LA-800T/P Multi-Functional Tethered Lighting UAV | Full Specifications & Applications
1、AIRFRAME STRUCTURE & HARDWARE PARAMETERS

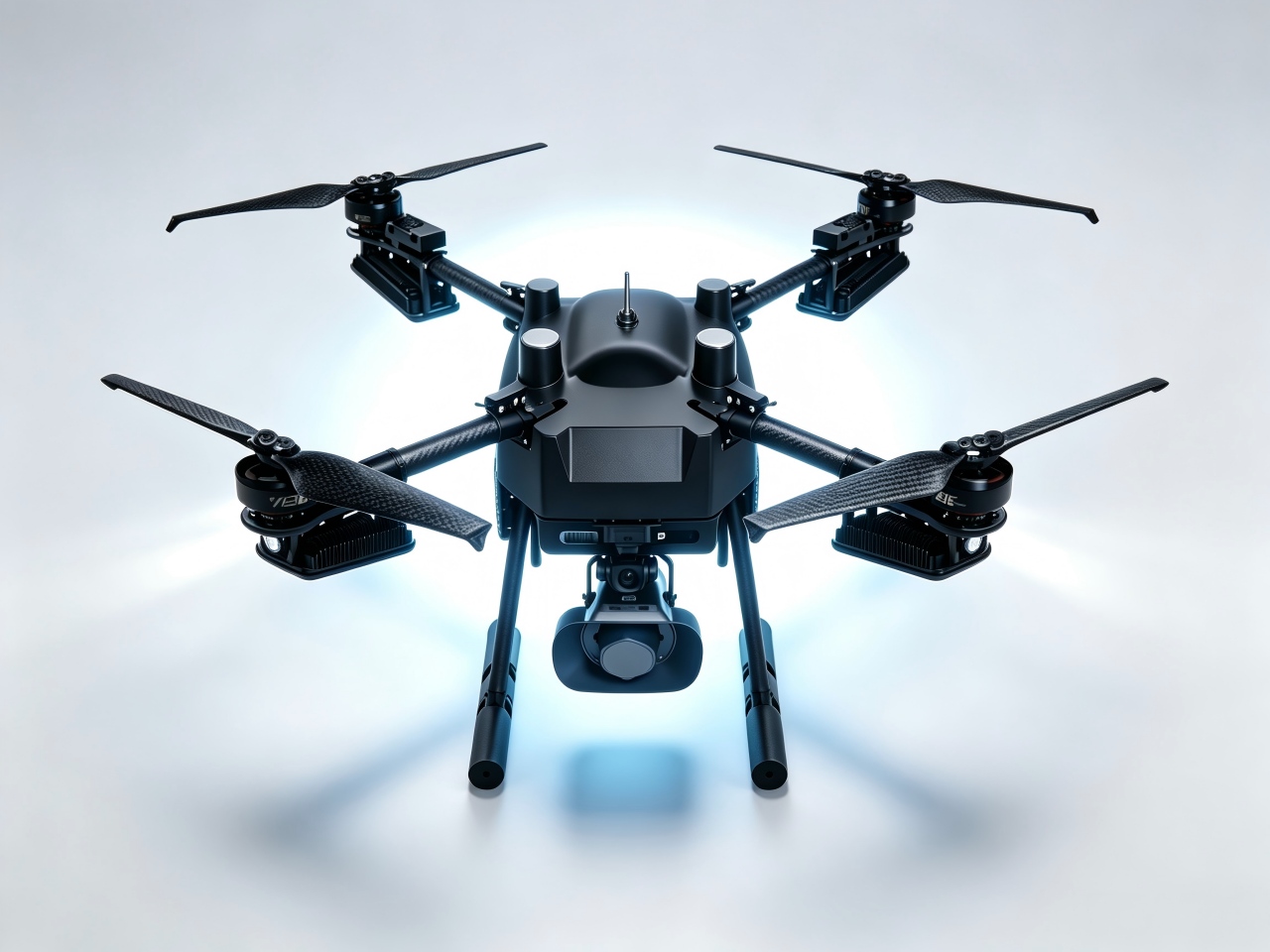

UAV Basic Configuration

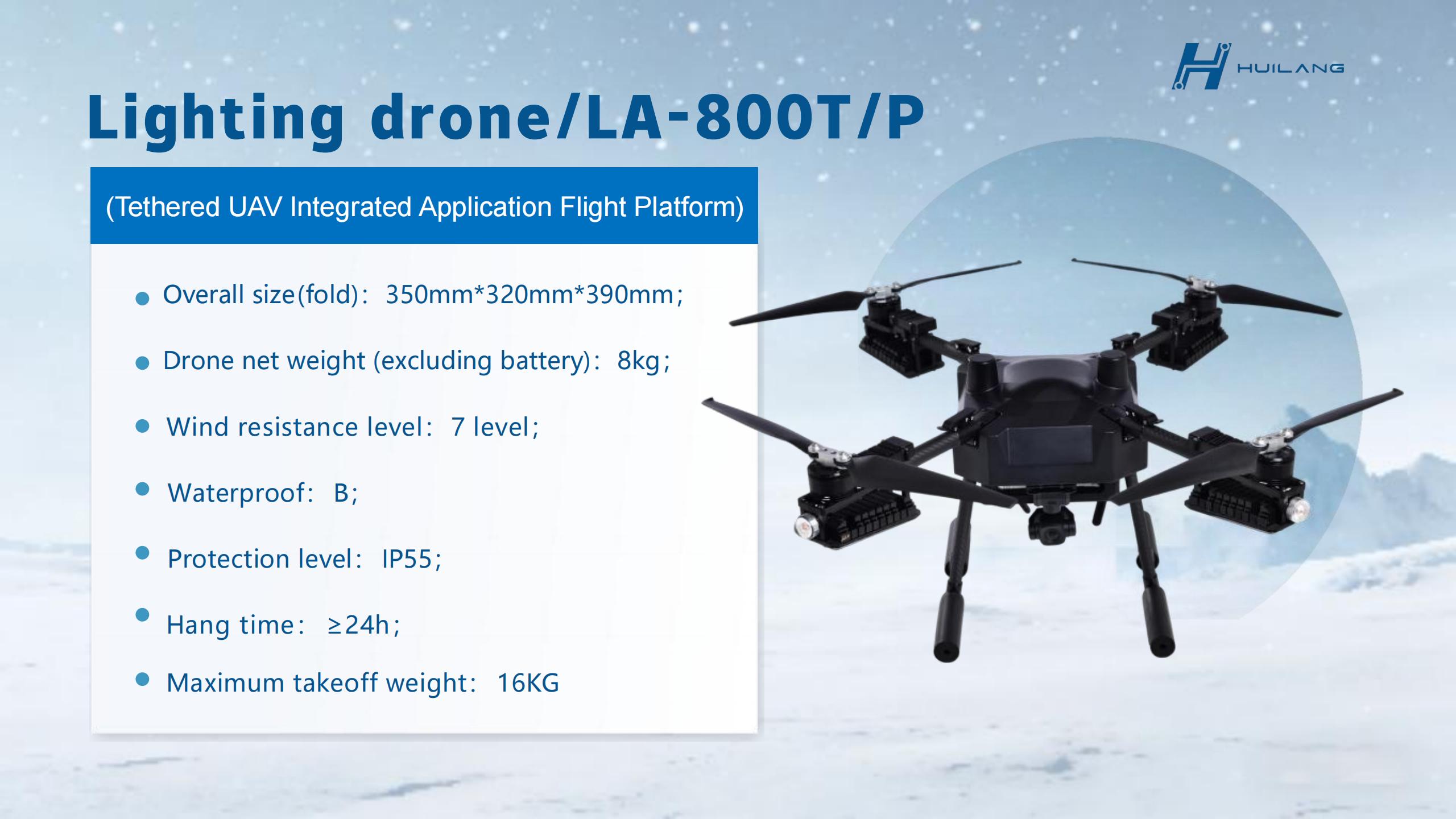

Folded dimensions: 350×320×390mm; bare weight: 8kg; maximum takeoff weight: 16kg. Adopting a full carbon-fiber lightweight and high-rigidity airframe, the UAV resists Level 7 strong winds and features an IP55 ingress protection rating for stable operation in rain, snow and dusty environments. The maximum operating altitude reaches 90 meters, enabling adaptive missions over complex terrains such as mountainous areas and river channels.

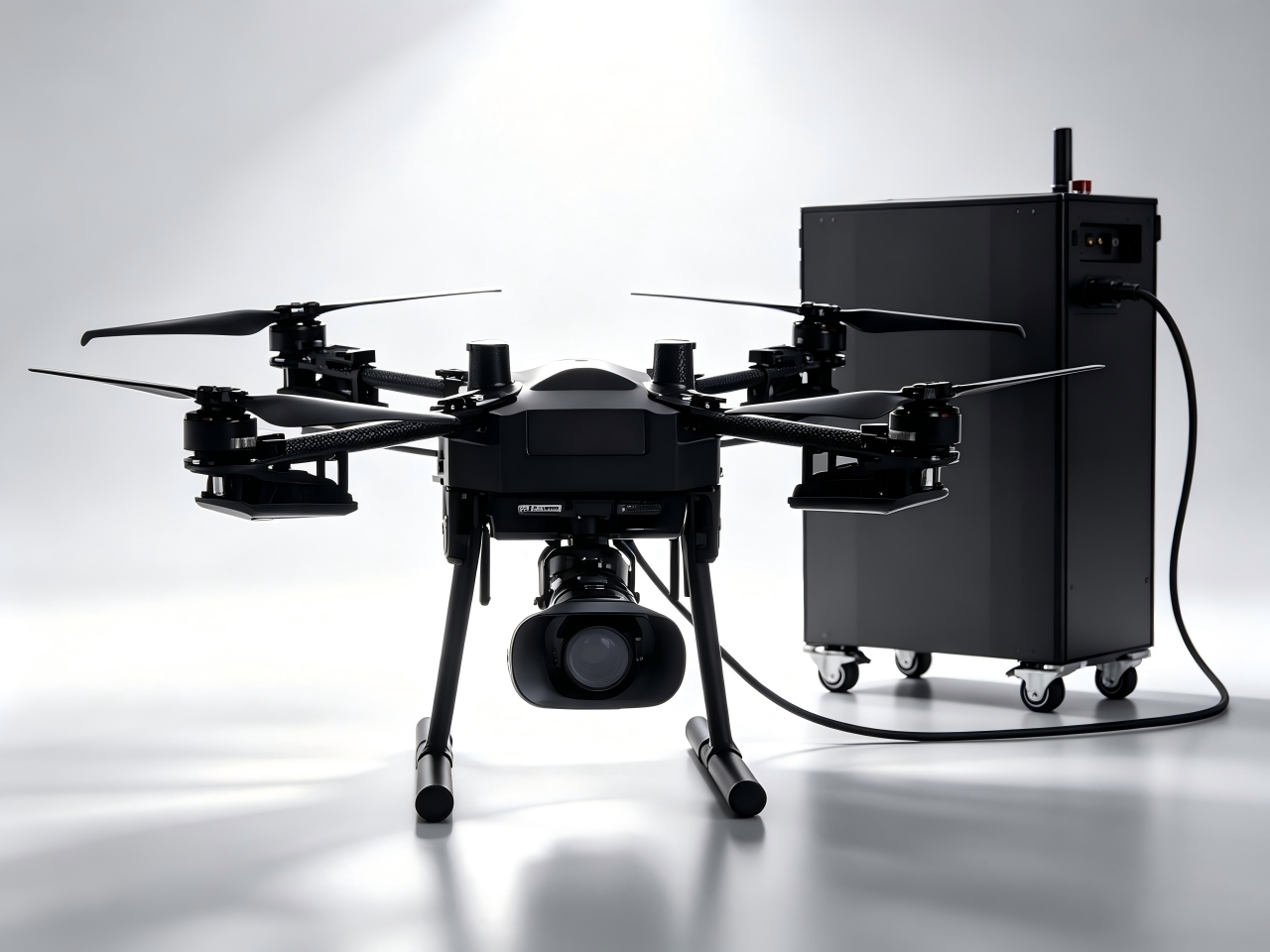

Tethered Ground Control Station

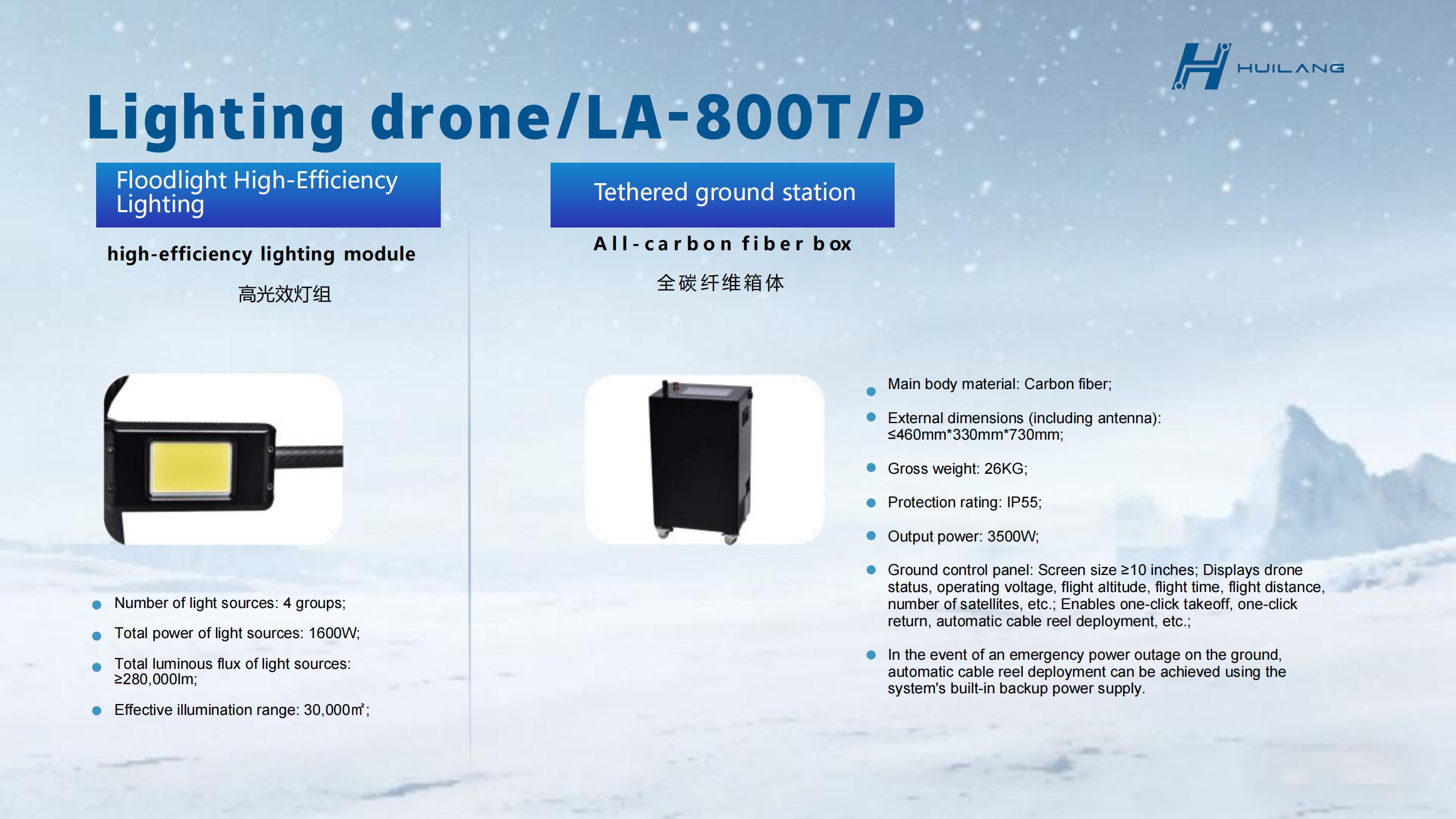

The ground station adopts a carbon-fiber enclosure with dimensions of 460×330×730mm and a total weight of 26kg, delivering a rated output power of 3500W. Equipped with a 10-inch+ industrial touch screen, it displays real-time flight altitude, distance, voltage and satellite quantity. It supports one-key takeoff/return and automatic cable retraction. A built-in backup power supply triggers automatic cable recovery upon sudden power failure, completely eliminating crash risks. Matched with a dedicated 5300mAh ultra-low-temperature battery, it maintains full power output without attenuation at -40℃ extreme cold environments.
Positioning & Safety Protection
Standard configuration includes independent BeiDou positioning, with optional dual-antenna RTK high-precision positioning providing ±0.5m positioning accuracy for stable fixed-point hovering. Multiple built-in safety logics enable automatic return on low power or ground power failure and one-key motor stop, greatly enhancing operational safety for unattended field emergency missions.
2、CORE LIGHTING SYSTEM
Equipped with 4 sets of high-efficiency floodlight LED arrays with a total power of 1600W and a total luminous flux of 280,000lm. It delivers uniform wide-area illumination with no blind spots, covering an effective lighting area up to 30,000 square meters. The system provides full-range coverage for mountain forests, urban zones and waterways at night, perfectly applicable to large-scale personnel search and rescue and on-site security supplementary lighting. Its high-altitude irradiation offers a broad field of view and minimizes ground lighting blind zones.
3、MULTI-FUNCTIONAL EXPANSION INTEGRATION (T/P UPGRADE CORE ADVANTAGE)

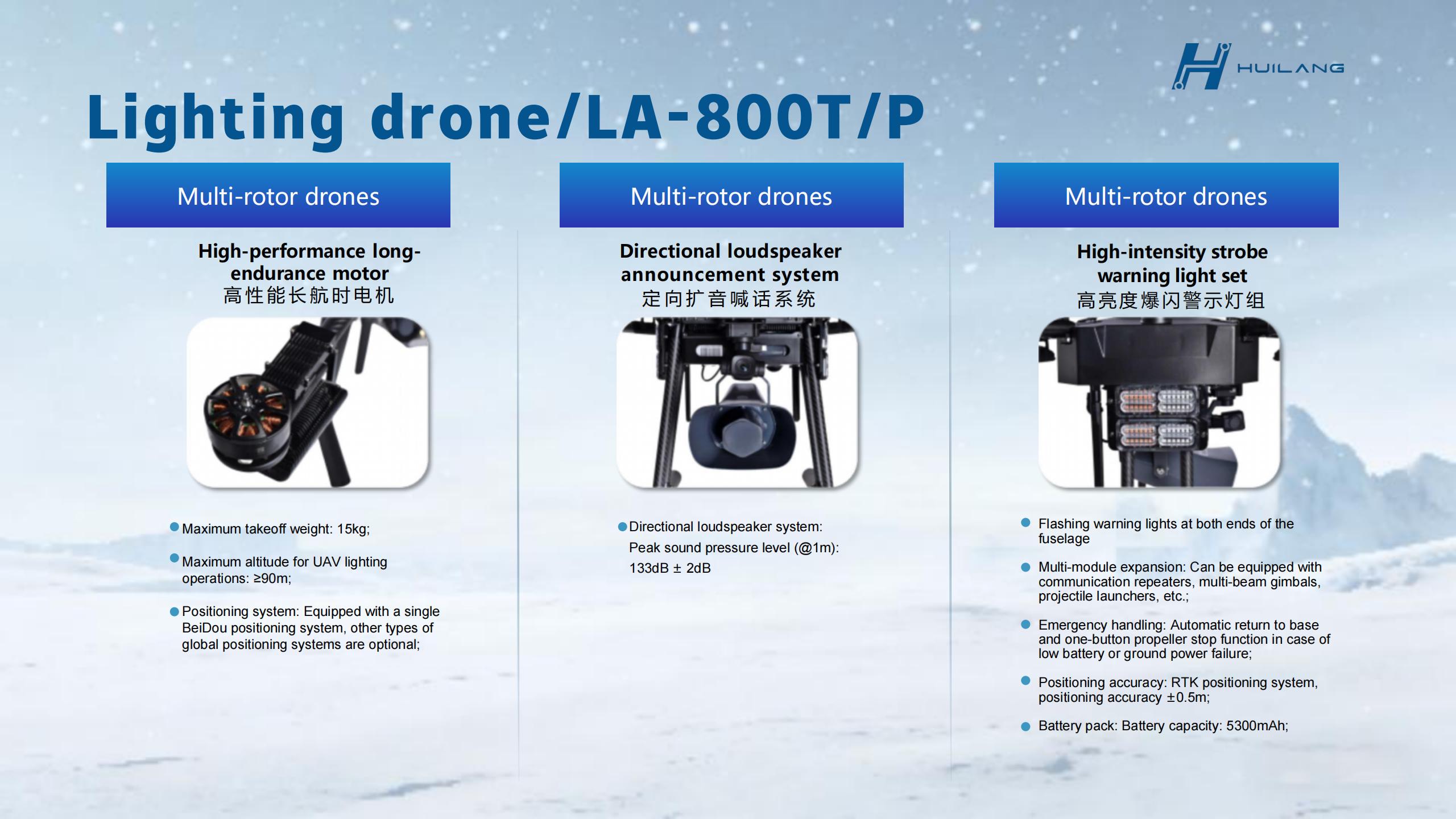

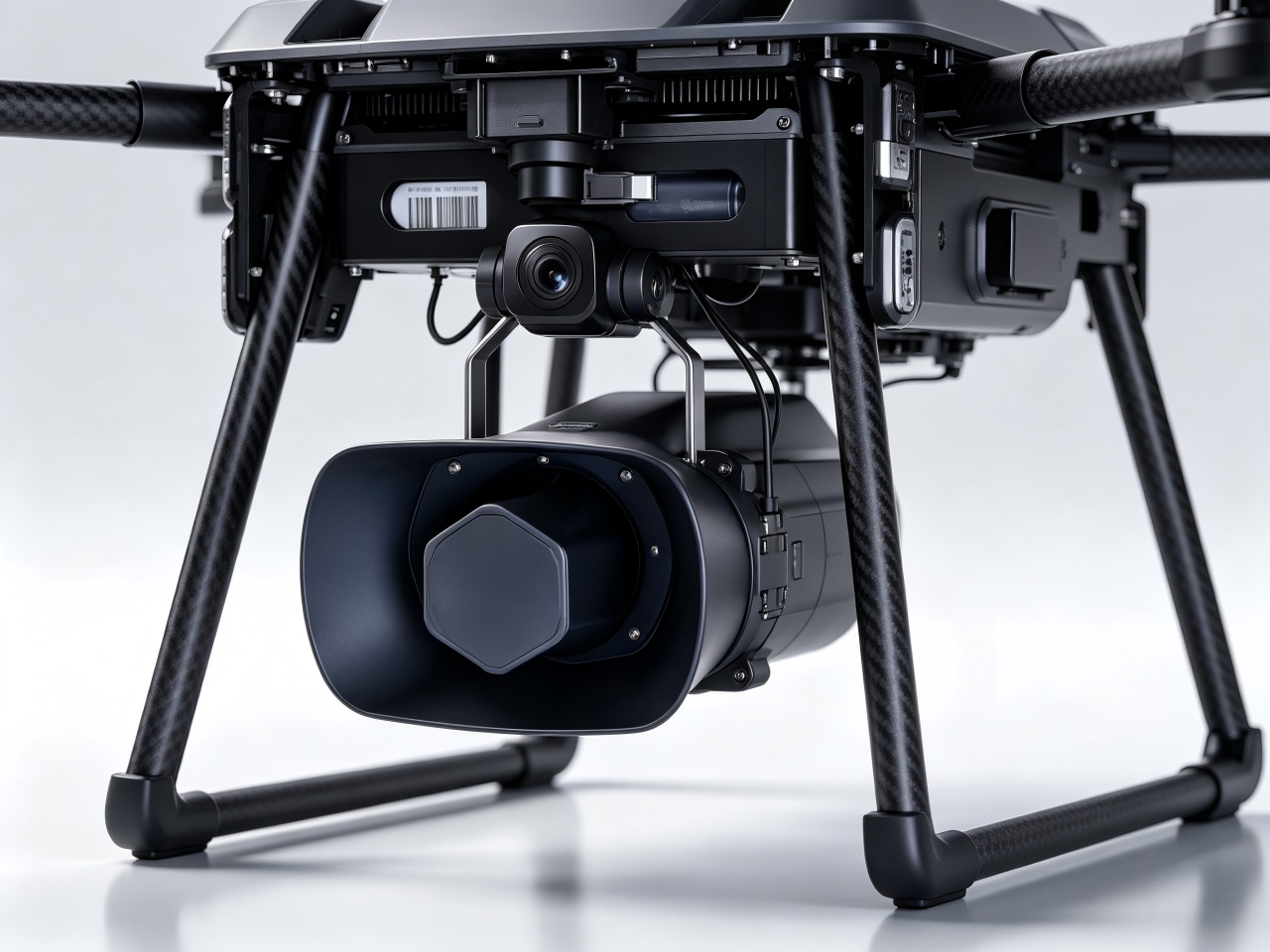

Directional Loudspeaker System：Delivers a peak sound pressure of 133dB±2dB at a 1-meter distance, supporting real-time remote voice broadcasting and early warning audio playback for personnel evacuation and on-site command；
Dual-Side Strobe Warning Lights：High-frequency red and blue strobe lights ensure long-distance visibility at night, achieving high recognition for on-site alerting and road closure control；
Multi-Functional Payload Interface：Supports modular upgrades including material throwers, communication relays and multi-axis gimbals. It enables emergency rescue material delivery and temporary airborne communication base station establishment；
Multi-Mode Synchronous Operation: Lighting, voice broadcasting and warning functions can be activated simultaneously, allowing a single device to complete multiple emergency mission types.。
4、HIGH-PRECISION POSITIONING & SAFETY SYSTEM
The drone comes standard with BeiDou positioning and optional RTK dual-antenna high-precision positioning with ±0.5m positioning accuracy and stable hovering performance. Built-in comprehensive safety mechanisms include low-power early warning, power-off automatic return-to-home and one-key propeller stop, effectively improving reliability during unattended field emergency operations.
5、LOW-TEMPERATURE ENDURANCE & DURABILITY VERIFICATION

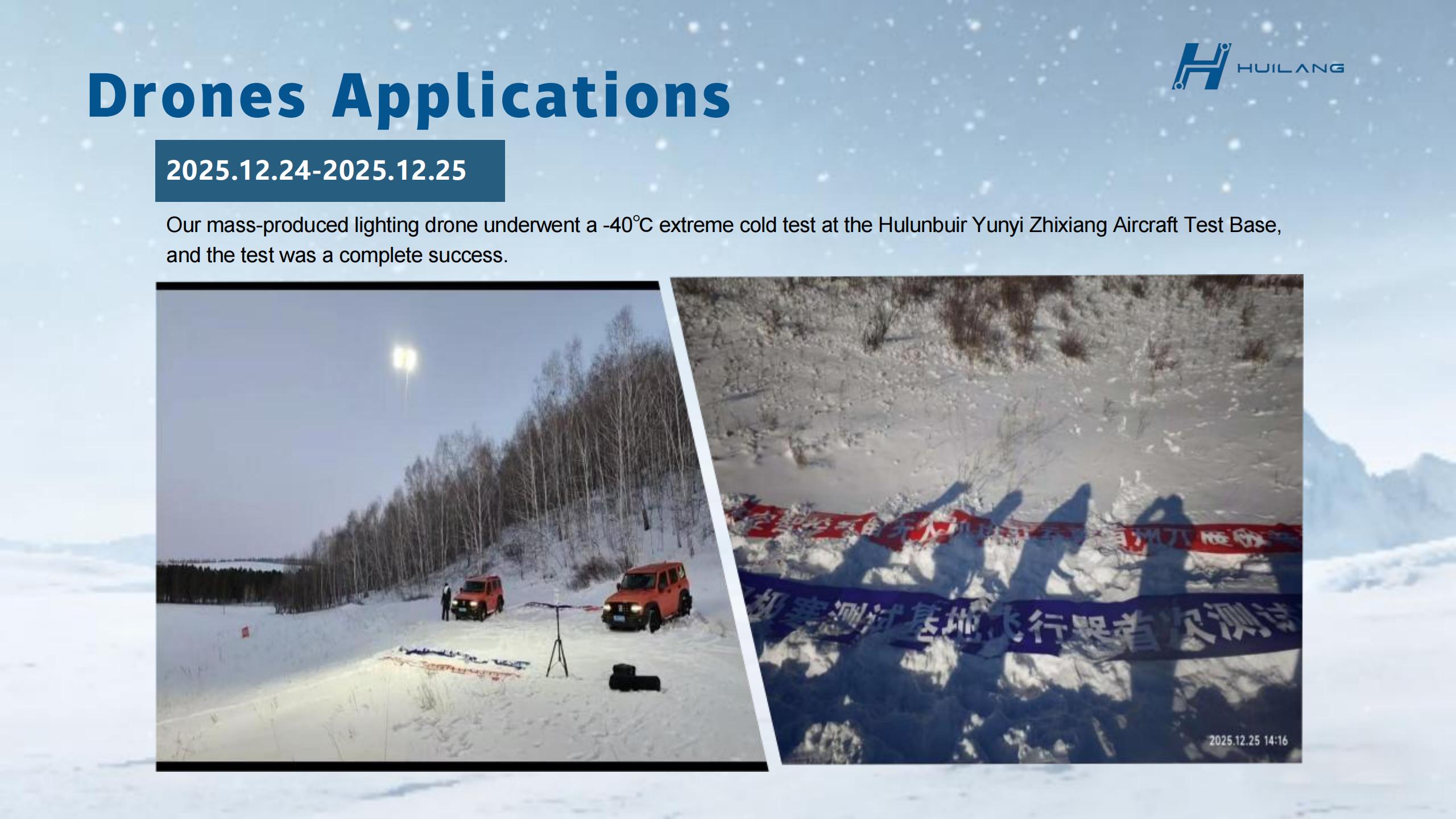

Powered by self-developed ultra-low-temperature lithium batteries, the UAV maintains stable flight performance at -40℃ extreme cold conditions. It has completed 70-hour uninterrupted fatigue hovering tests and supports 24-hour non-stop lighting missions without landing for recharging. It has passed field tests including -40℃ extreme cold verification in Hulunbuir and plateau mountain rescue drills, delivering strong adaptability to high-altitude and frigid-region scenarios.
6、PRACTICAL APPLICATION SCENARIOS
Public Security & Border Control：Night border patrol, public security blockade and crowd evacuation broadcasting；
Fire & Emergency Rescue：Large-scale night search and rescue and on-site warning for earthquakes, floods and landslides；
Large-Scale Events：All-round night lighting and on-site management for competitions, exhibitions and public gatherings；
Plateau & Polar Regions：High-altitude field scientific exploration and night operation support for cold-region engineering；
Traffic Emergency Rescue：Night lighting and early warning guidance for road accident disposal and traffic diversion.
7、AUTHORITATIVE PRACTICAL CASES
Participated in the Sichuan Provincial "Emergency Mission 2025" Plateau Earthquake Rescue Drill and obtained official recognition through on-site performance comparison；
Designated lighting UAV for full-scale public security equipment practical training in Guangxi Province；
Displayed as official demonstration equipment for the ASEAN Disaster Management Training Course；
Completed special flight tests under -40℃ extreme cold conditions in Hulunbuir with fully compliant performance；
Received on-site inspection by Australian enterprises and reached intentional export cooperation。
6、EXPANSION & CUSTOMIZATION SERVICES
Customization is available for lighting power, payload modules and cabinet structure. We provide sample testing, on-site technical docking and integrated PACK power supply solutions. The product is covered by a one-year warranty with full lifecycle after-sales technical support.
